Precision That Locks In!

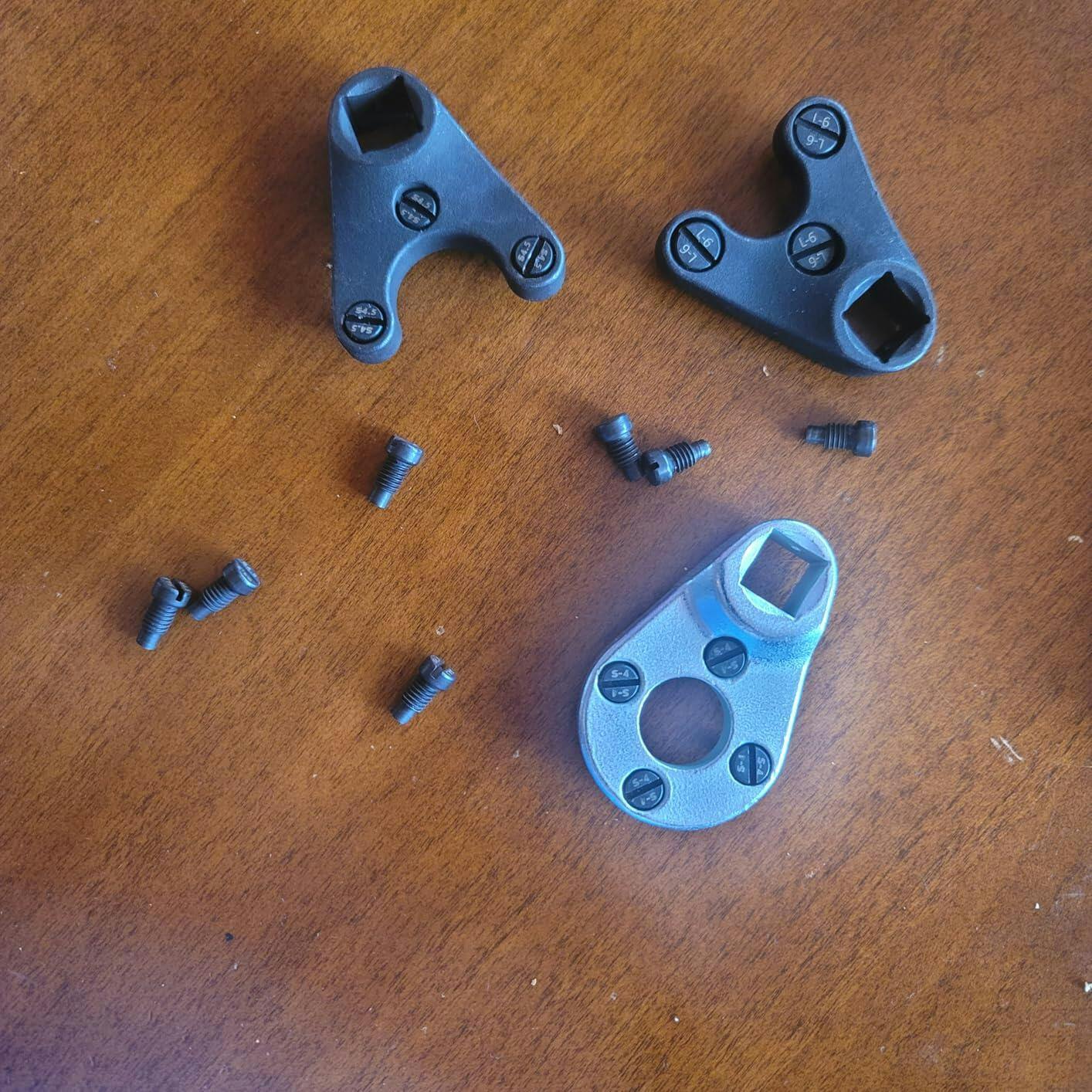

“I used it on a 200HP Honda outboard. Locked into the cap with no play and came off clean using a breaker bar.” - Logan B.

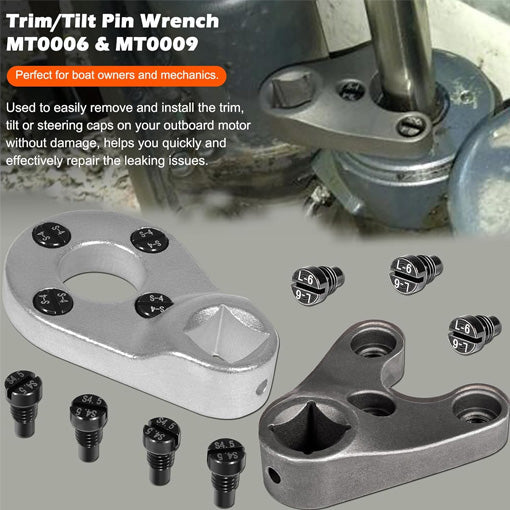

Why Get Our Outboard Trim Tilt Pin Wrench Set?

✅Factory-Spec Fit for Every Brand: This kit directly replaces Yamaha factory tools YB-06175-1A and YB-06548, and fits SHOWA hydraulic trim units across Yamaha, Honda, Suzuki, Johnson, and Evinrude. No need to improvise—each tool and seal is engineered for a snug, factory-grade fit.

✅No Slipping, No Breaking: The precision-cut pins match cap holes exactly, holding firm under torque. The tools are rated to 180–200 ft-lbs minimum pin strength, giving you confidence during removal without risking damage or injury.

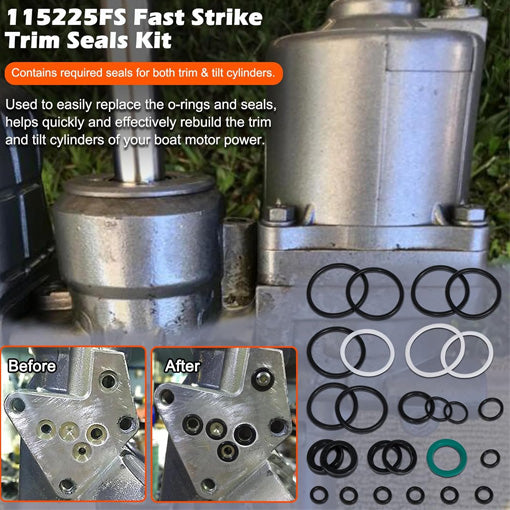

✅Leak-proof Resealing: The included Fast Strike seal set fits a wide range of outboard trim units from 115HP to 250HP. Every seal is sized to match SHOWA-style caps, ensuring leak-proof resealing without trial and error.

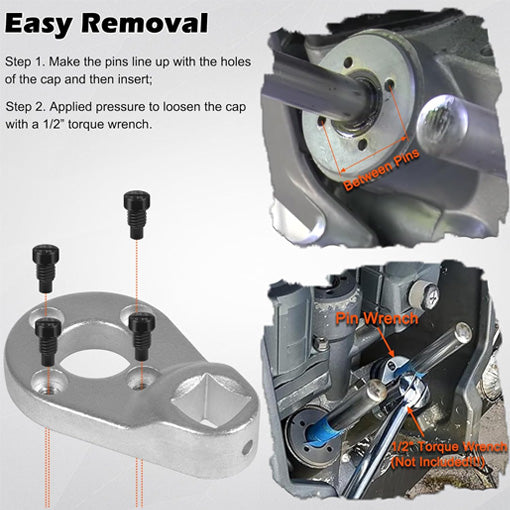

🌟HOW TO USE

• First, line up the pins with the holes of the cap.
• Next, insert it.
• Lastly, apply pressure to loosen the cap with a ½” torque wrench.


📓FREQUENTLY ASKED QUESTIONS

Q: What brands is this kit compatible with?
A: This kit is designed for all outboard engines using SHOWA-manufactured trim/tilt units. That includes most models from Yamaha, Suzuki, Honda, Johnson, Evinrude, Tohatsu, and Nissan.

Q: What size axles or shafts does the seal kit fit?
A: The Seal set fits 20" shaft outboards from 115HP to 250HP using SHOWA 3-ram trim systems. It works on Yamaha, Suzuki, Honda, and other compatible engines.

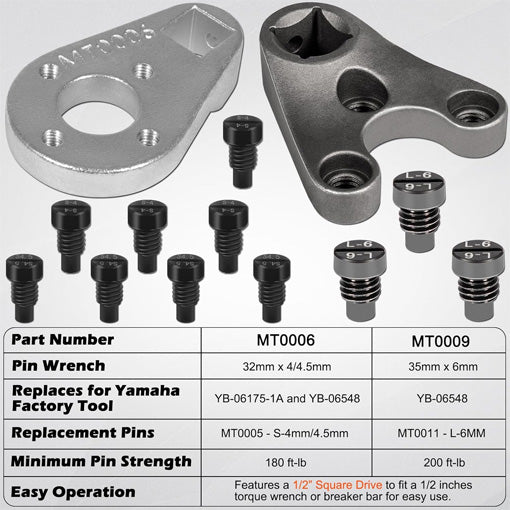

⚙️ Specifications:

• Color: Black and Silver
• Item Weight: 0.68 lbs,
• Material: Steel and Rubber

Pin Wrench MT0006

• Size: 32mm x 4mm
• Pin Type: S-4mm and S-4.5mm replaceable pins
• Pin Strength: Minimum 180 ft-lb
• Equivalent Tool: Yamaha YB-06175-1A / YB-06548
• Drive: 1/2" square (fits torque wrench or breaker bar)
• Application: Trim caps for Yamaha F115–F150, VMAX, 2-Stroke 115–225HP, Suzuki, Honda, Johnson, Evinrude

Pin Wrench MT0009

• Size: 35mm x 6mm
• Pin Type: L-6mm replaceable pins
• Pin Strength: Minimum 200 ft-lb
• Equivalent Tool: Yamaha YB-06548
• Drive: 1/2" square
• Application: Larger trim caps for 2004–2010 Yamaha F115–F150, F175–F200 (2.8L), Suzuki, Honda, Johnson, Evinrude.

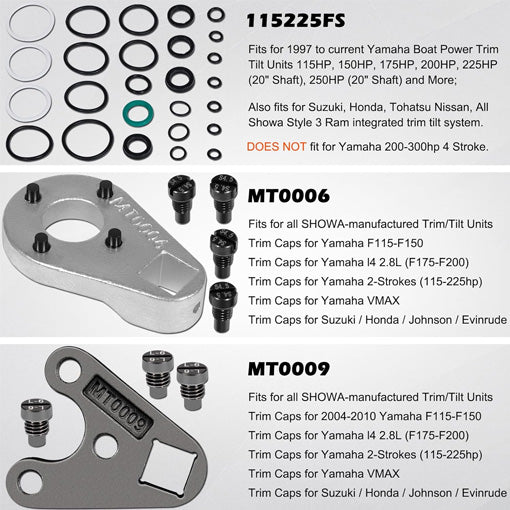

Compatibility:

⚙️ Yamaha

• Yamaha F115 – F150 (4-Stroke)
• Yamaha F175 – F200 (2.8L Inline 4)
• Yamaha VMAX
• Yamaha 2-Stroke 115HP – 225HP
• Yamaha 115HP, 150HP, 175HP, 200HP, 225HP (20" Shaft)
• Yamaha 250HP (20" Shaft)

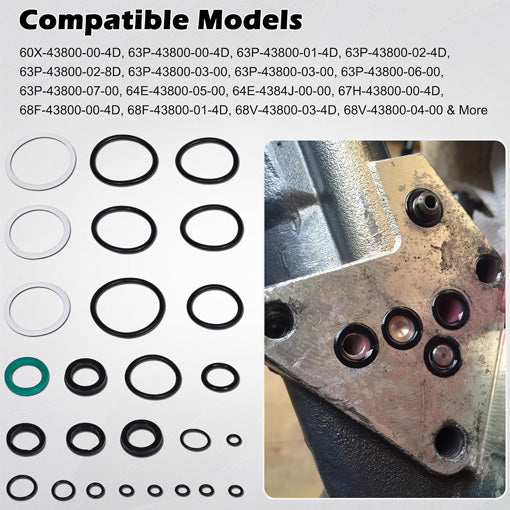

• Yamaha Models (Trim Units):


  §  60X-43800-00-4D

  §  63P-43800-00-4D

  §  63P-43800-01-4D

  §  63P-43800-02-4D

  §  63P-43800-02-8D

  §  63P-43800-03-00

  §  63P-43800-06-00

  §  63P-43800-07-00

  §  64E-43800-05-00

  §  64E-4384J-00-00

  §  67H-43800-00-4D

  §  68F-43800-00-4D

  §  68F-43800-01-4D

  §  68V-43800-03-4D

  §  68V-43800-04-00

❌Not Compatible With

• Yamaha 200HP–300HP 4-Stroke models


⚙️ Suzuki

·        All Suzuki models with SHOWA-manufactured trim/tilt units

·        3-Ram Integrated Trim/Tilt Systems

⚙️ Honda

·        All Honda outboard motors using SHOWA-style trim/tilt systems

·        Common on mid-to-large horsepower units (115HP–225HP range)

⚙️ Evinrude

·        All Evinrude motors equipped with SHOWA hydraulic trim/tilt units

⚙️ Johnson

·        All Johnson motors with SHOWA-manufactured trim/tilt caps

⚙️ Tohatsu / Nissan

·        Applicable to models using SHOWA 3-ram trim/tilt systems

·        includes mid-range and larger outboard motors (usually 115HP+)

·        Product Dimensions: ‎6.97 x 5.24 x 0.94 inches

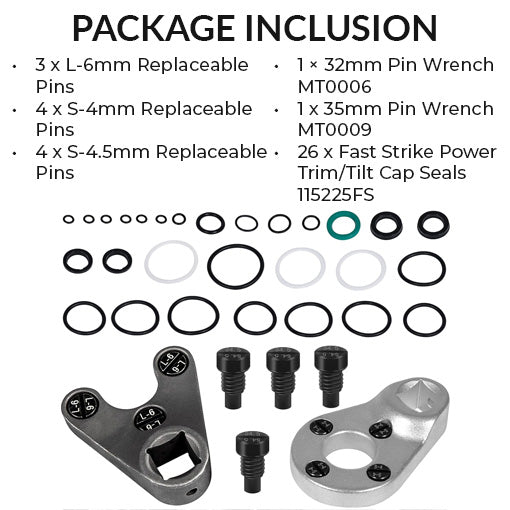

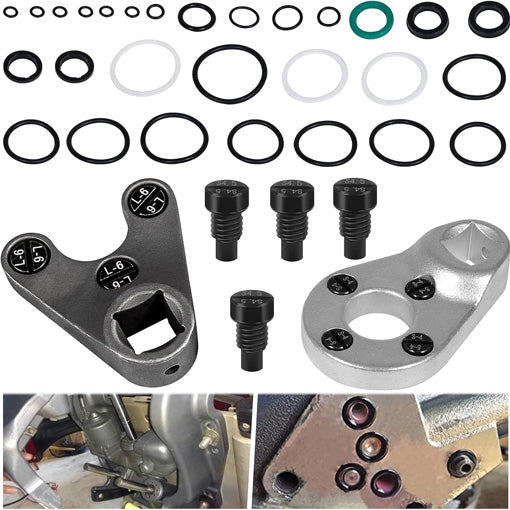

📦Package Inclusion:

• 3 x L-6mm Replaceable Pin
• 4 x S-4mm Replaceable Pins
• 4 x S-4.5mm Replaceable Pins
• 1 × 32mm Pin Wrench MT0006
• 1 x 35mm Pin Wrench MT0009

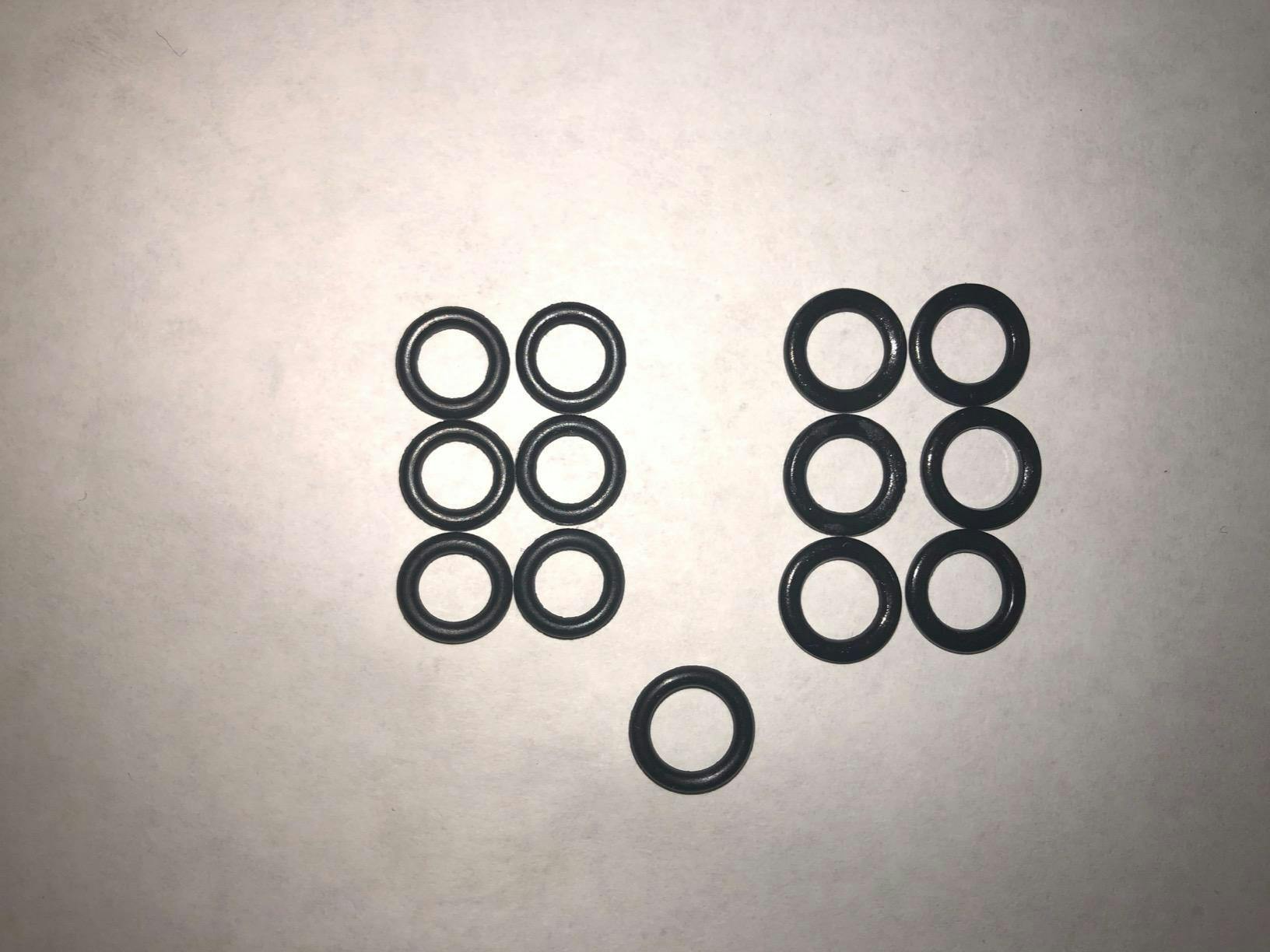

• 26 x Fast Strike Power Trim/Tilt Cap Seals 115225FS
